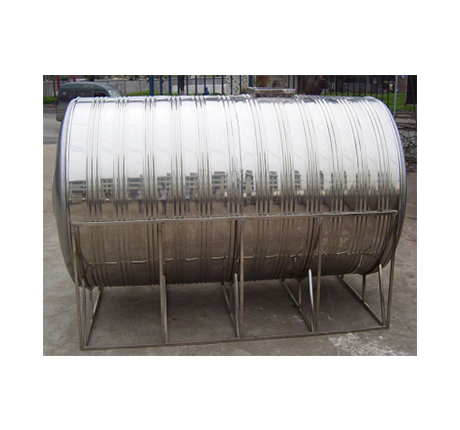

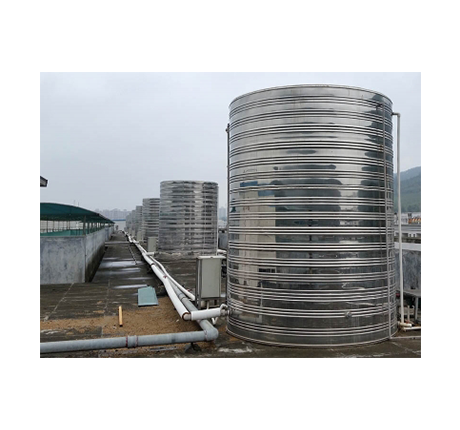

Stainless Steel Water Tank

Air to water heat pump absorbs the heat from the air, the compressor makes the refrigerant into high-temperature and high-pressure gas. The refrigerant heats the cold water through the heat exchanger. After the heat is released, the refrigerant continues to return to the compressor and absorbs the heat from the air. The cycle is repeated so as to produce hot water again.

TMALL JD.com

ProductSpecifications

Heating Capacity (KW)
22.0
Refrigerant
R410a
Compressor
Copeland
Rated Input Power (KW)
4.60
Charge（kg）
3.5
Condenser
Titanium Tube Heat-Exchanger
Rated Input Current (A)
9.5
Heating
Cycle
Evaporator
Aluminum Finned Evaporator
COP（W/W）
4.78
Water Flow (L/H)
380
Water Flow (L/H)
2-φ7
Power Supply (KW)
380V/3N/50Hz
Power Supply (KW)
4000
Throttle Device Type
EEV
Max Input Power (KW)
5.6
Inlet Water Connection（mm）
PVC Tube DN50
Fan Position
Vertical
Max Input Current (A)
12.5
Outlet Water Connection（mm）
PVC Tube DN50
Water Rated Pressure（MPa）
0.55
Noise（dB)
≤60
Power Cord
3x6.0mm2+2x4.0mm2
Water Pressure Loss（kPa）
60
Working Temperature（℃）
-10～43
Water Pump：Stroke-Flow
10m-6m3/h
Size（mm）
717x717x950
Rated Outlet Water Temperature（℃）
28
Operation
Wire Controller
Unit Weight（kg）
105
Max Outlet Water Temperature（℃）
43

Remark:In compliance with Air Source Heat Pump for Swimming Pool Industrial Standard with JB/T 11969-2014 (Air Source Heat Pump for Swimming Pool)

Super-1 efficiencyEvery shower saves money

High-Efficiency Compressor for Heat Pump
Heat pump compressor has max working life 20 years, effective operation and is good at High temperature & high pressure resistance
Electric Expansion Valve
EEV has high accuracy in control of gas flow & evaporation, to improve the effectiveness
R410a Eco-friendly gas
Take Eco-friendly gas R410a,to get higher heat-exchange efficiency

Multi SilenceGood Sleep

Mult-silence technology, including smart inverter fan, sound-deafening compressor, flow pipe optimation, vibration-reduction device, lowers the noise to 45(dB) for comfortable life

Smart Inverter Fan Motor
Intelligent Noise-Reduction
Compressor with Sound-Deafening
Good Effect of soundproof by sound-deafening
Harder Sound-Absorbing Cotton
Stereo Absorbing Sound
Multi Vibration-Reduction Tech
Lower Vibration Noise

Advantages

Stainless Steel/Titanium material is without rust, has long working life and reliable quality

High-Efficiency Energy Saves up to 75%
To consume 1unit electricity, Heat pump produces 4units heating, 75% energy-saving by electric water heater
Safe & Eco-Friendly, Protect Your Family
There is no pollution to release, best choice for hot water
Central Hot Water System with Constant Temperature
It offers you 5 stars enjoyment of hot water by constant-temperature and efficient hot water
24hours Hot Water Supply
No worry to hot water supply if air exits, even if it has less solar in rainy day
